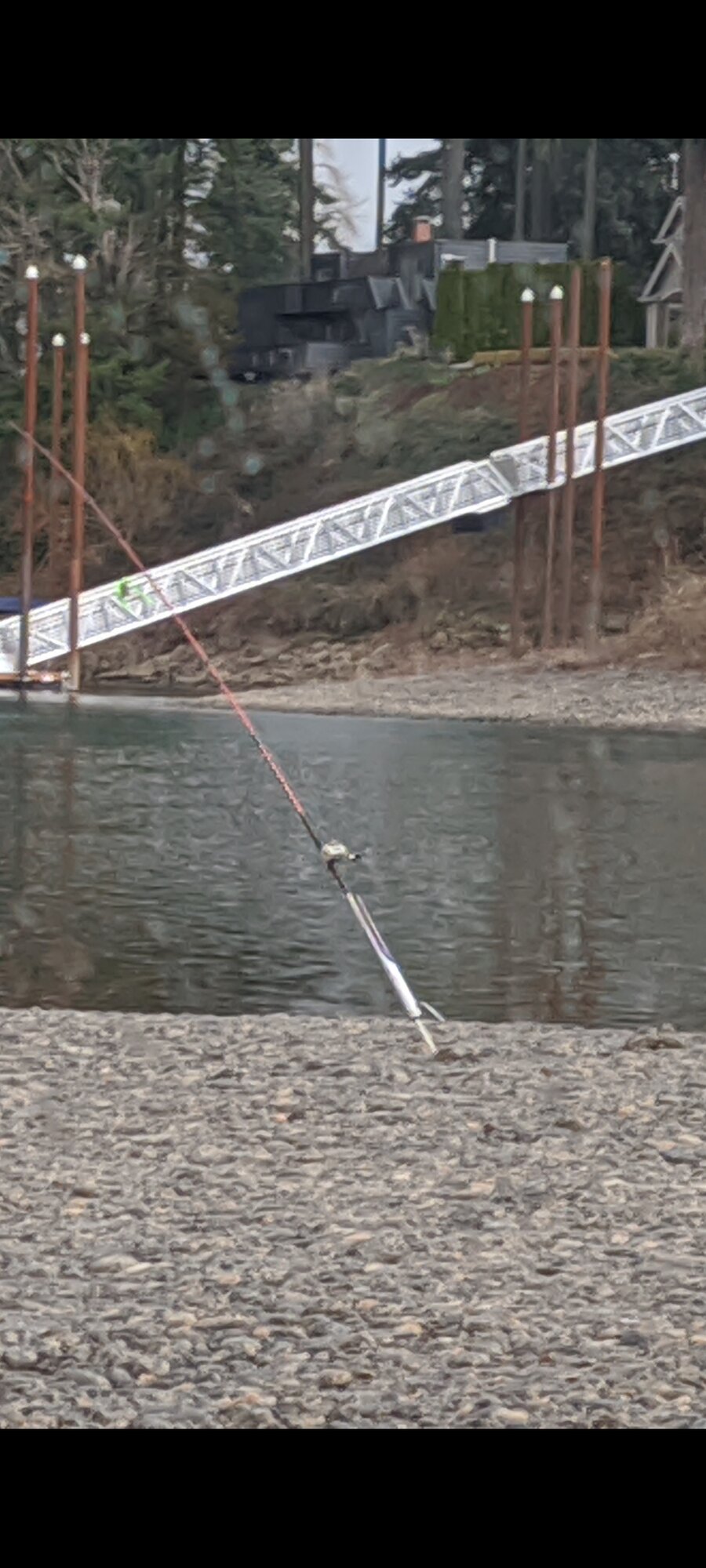

Does anyone know what kind of bank rod holders these are?

[drbgonzal]

Tried making my own with hose clamps and it sucks. Where do you buy these aluminum ones? They have a screw device on the bottom to lock in the holder.



[DOKF]

Looks like an easy DIY project ...

I've seen several made from PVC pipe over the past few years. Often using a straightened paint roller handle to fashion the dirt spike end.

Not sure about the clamp at the bottom; there are pros and cons to a clamp.



[GaryP1958]

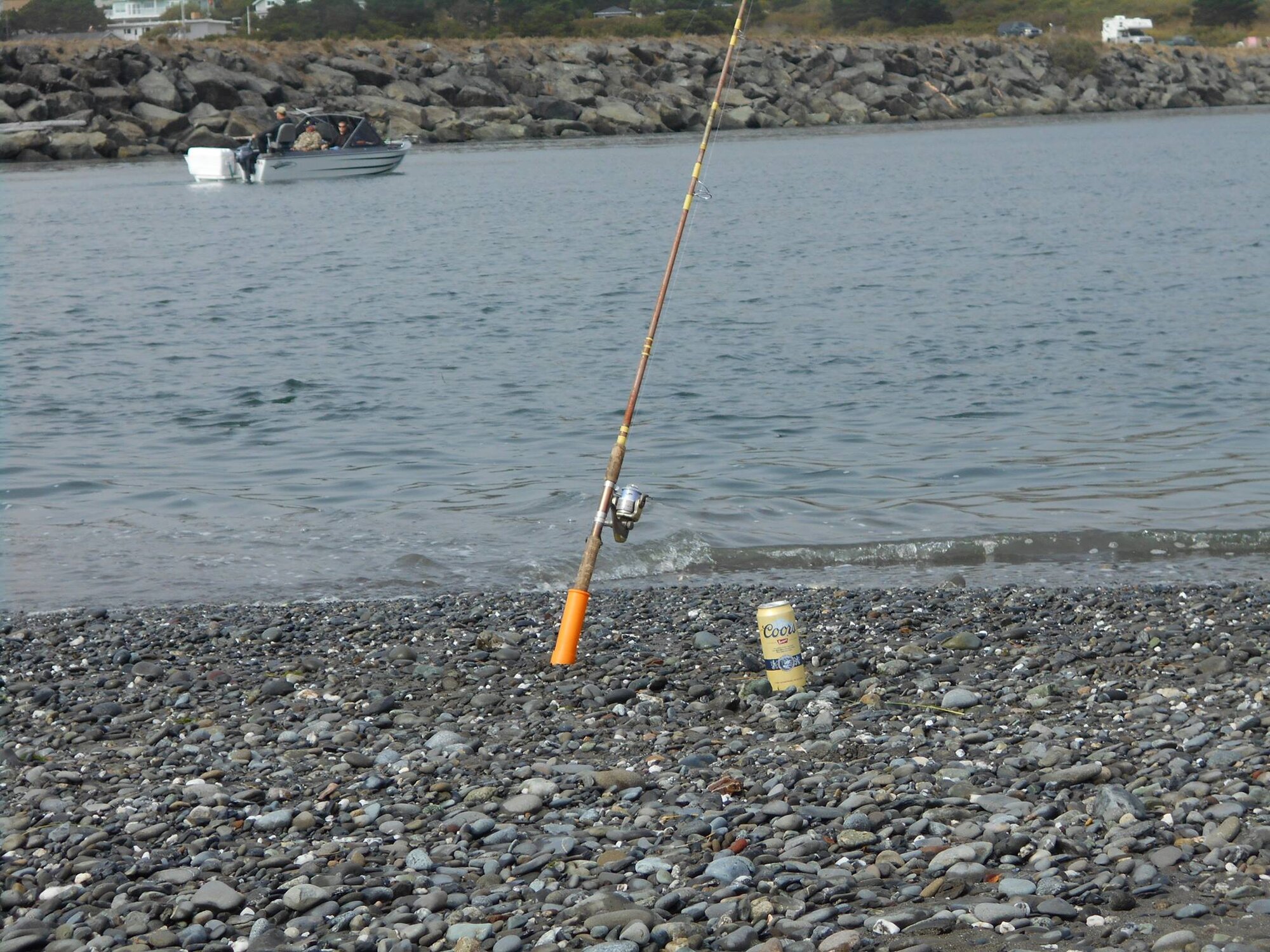

Mouth of the Rogue!



[Casting Call]

Check out U-Tube DIY "rod holder with recycled materials". Compact, cheap, personalize yourself. Let us know how you made out. Tony



[herrliechne]

Try Tim at "Willamette Specials".
The picture is one of his. I'm a happy customer of his. I get nothing for the referral.



[Casting Call]

$55.00!!!!!!!!! I don't know, for a rod holder? Tony



[Chromatose]

I do not know what those particular rod holders are, but I did as Tony mentioned and found this reel quick



[drbgonzal]

Thanks this is what Im looking for because I need to be able to smack the rebar down into the rocky beach vs hitting the pvc holder.



[pcstock]

I used a piece of steel angle, cut the tip to a point and screwed it to a PVC pipe. Cheap and easy. Just need access to an angle grinder.



[herrliechne]

The picture at the start looks like Meldrum Bar. Nothing but rock to drive into. I question whether PVC will take the beating driving it in at places like at Meldrum. PVC into Sand, ok. Dirt with some stone, maybe ok. I like driving steel into rocky places with a 2lb hammer, then attaching the holder as in the picture. But whatever works for you ......



[drbgonzal]

The picture at the start looks like Meldrum Bar. Nothing but rock to drive into. I question whether PVC will take the beating driving it in at places like at Meldrum. PVC into Sand, ok. Dirt with some stone, maybe ok. I like driving steel into rocky places with a 2lb hammer, then attaching the holder as in the picture. But whatever works for you ......

Yes its meldrum my pvc took a beating which is why Im changing my design



[Casting Call]

I used a piece of steel angle, cut the tip to a point and screwed it to a PVC pipe. Cheap and easy. Just need access to an angle grinder.

I think this is the best one K.I.S.S. Before locking down wingnut turn PVC perpendicular to angle iron drive as deep as needed into ground, turn PVC parallel to angle iron, and lock it down. Cut pcs. to length. Tony



[Bank10]

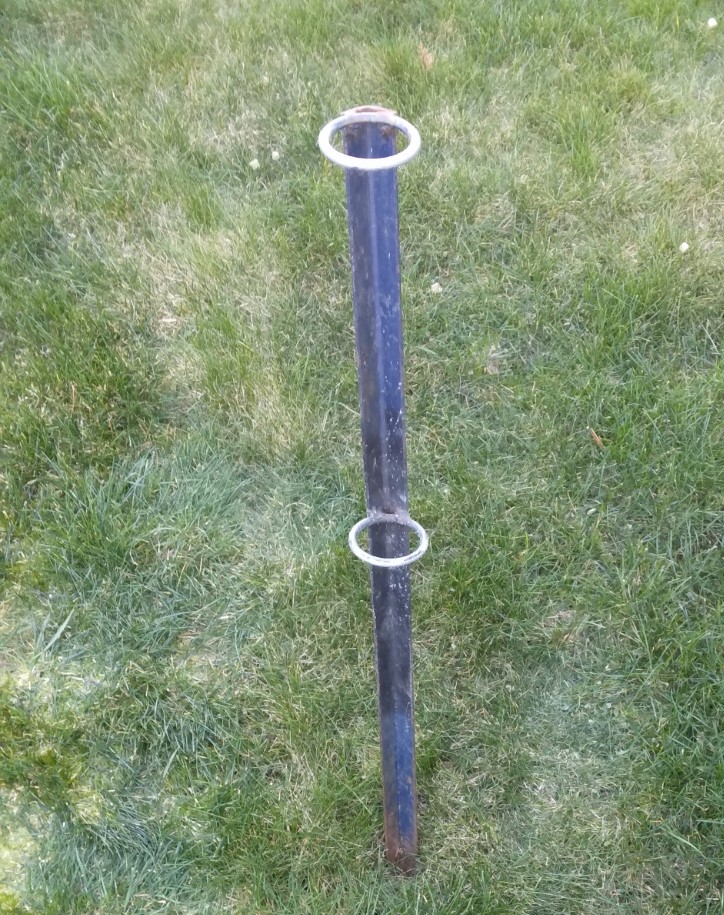

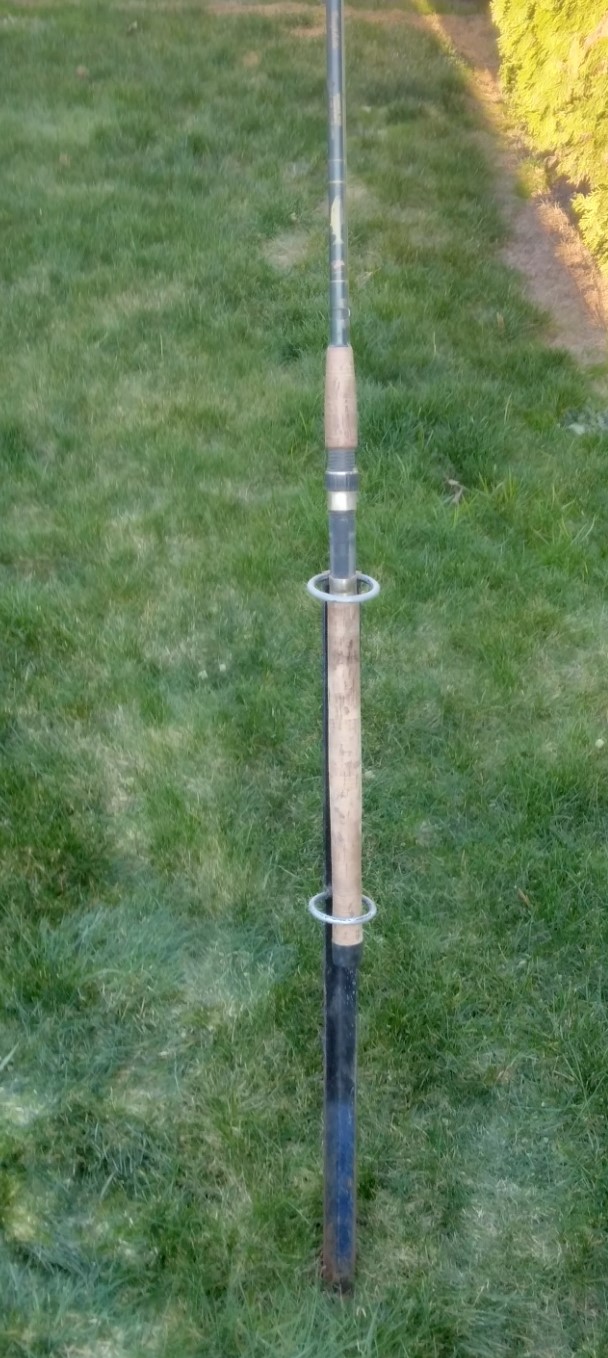

I bank fished for years, and built several different rod holders, but this last rod holder is easy to make and can be stuck into almost any thing or anywhere. Here are the preticulars on the rod holder;

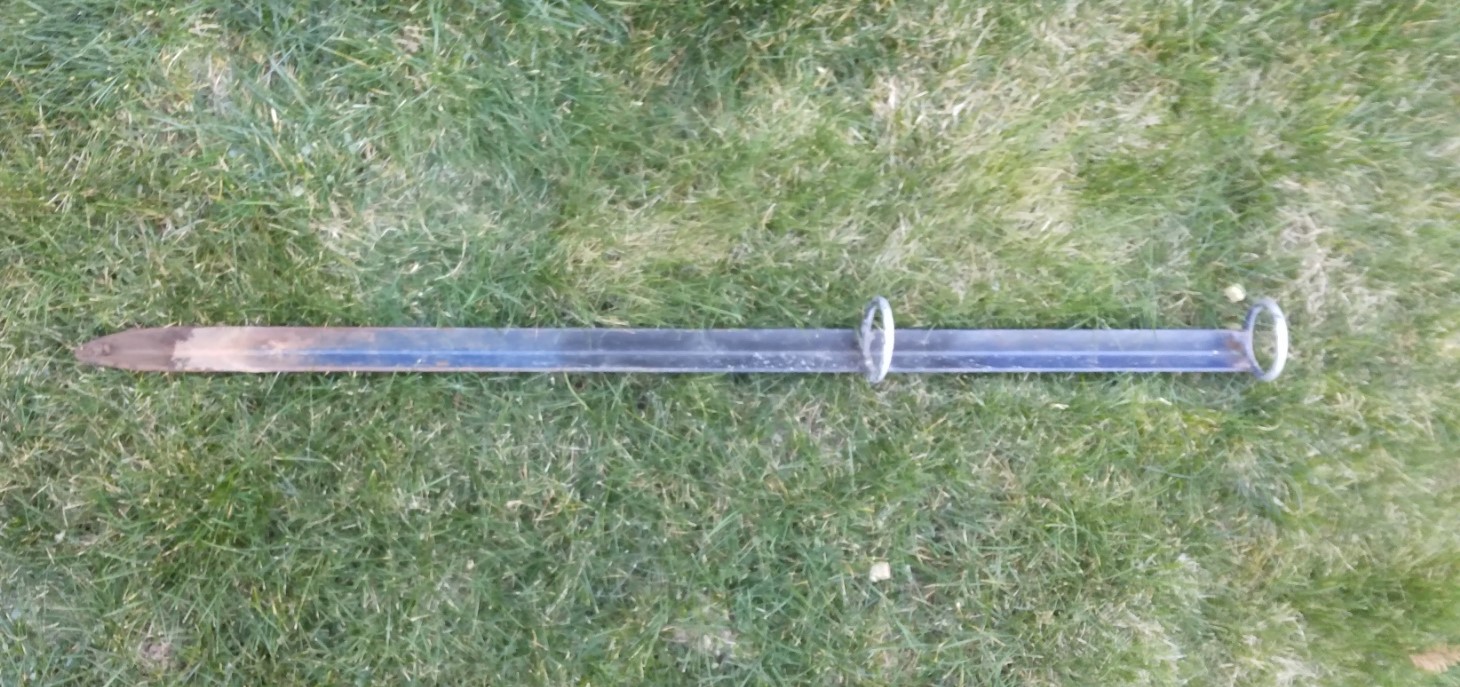

1" angle iron 3' long sharpened on the bottom.

weld 2 1/2" metal rings onto the fishing rod holder.

Paint if you need to then go fishing. This rod holder can be pushed into rocks, sand, and dirt.

I have a few of these that I would be willing to sell if anyone is interested $20.00 each



[plumbertom]

I used a piece of steel angle, cut the tip to a point and screwed it to a PVC pipe. Cheap and easy. Just need access to an angle grinder.

Photos.Please.



[Casting Call]

P....Tom Again...."rod holder with recycled materials" on U-TUBE!!!

Check out U-Tube DIY "rod holder with recycled materials". Compact, cheap, personalize yourself. Let us know how you made out. Tony



[pcstock]

Photos.Please.



[pcstock]

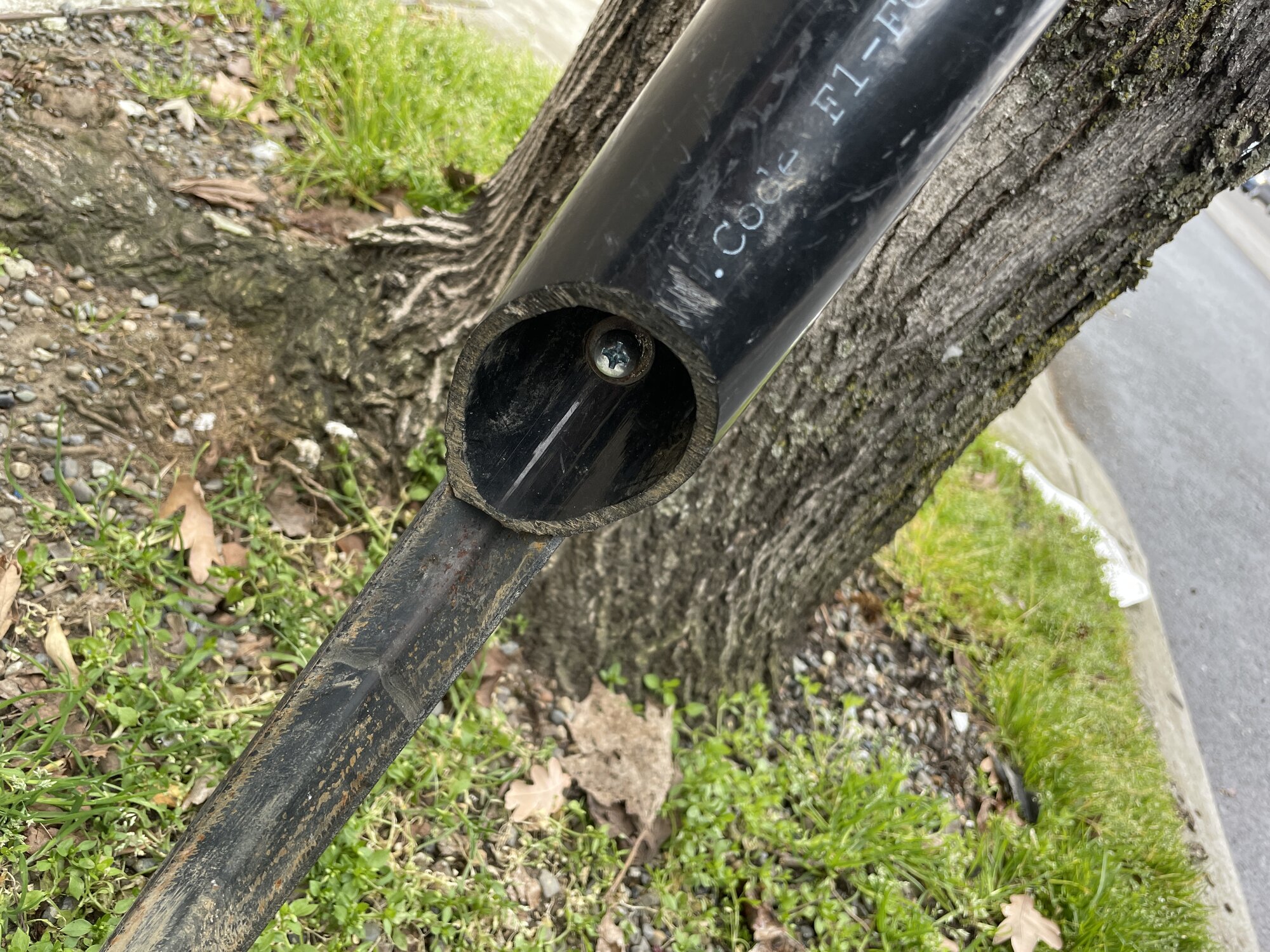

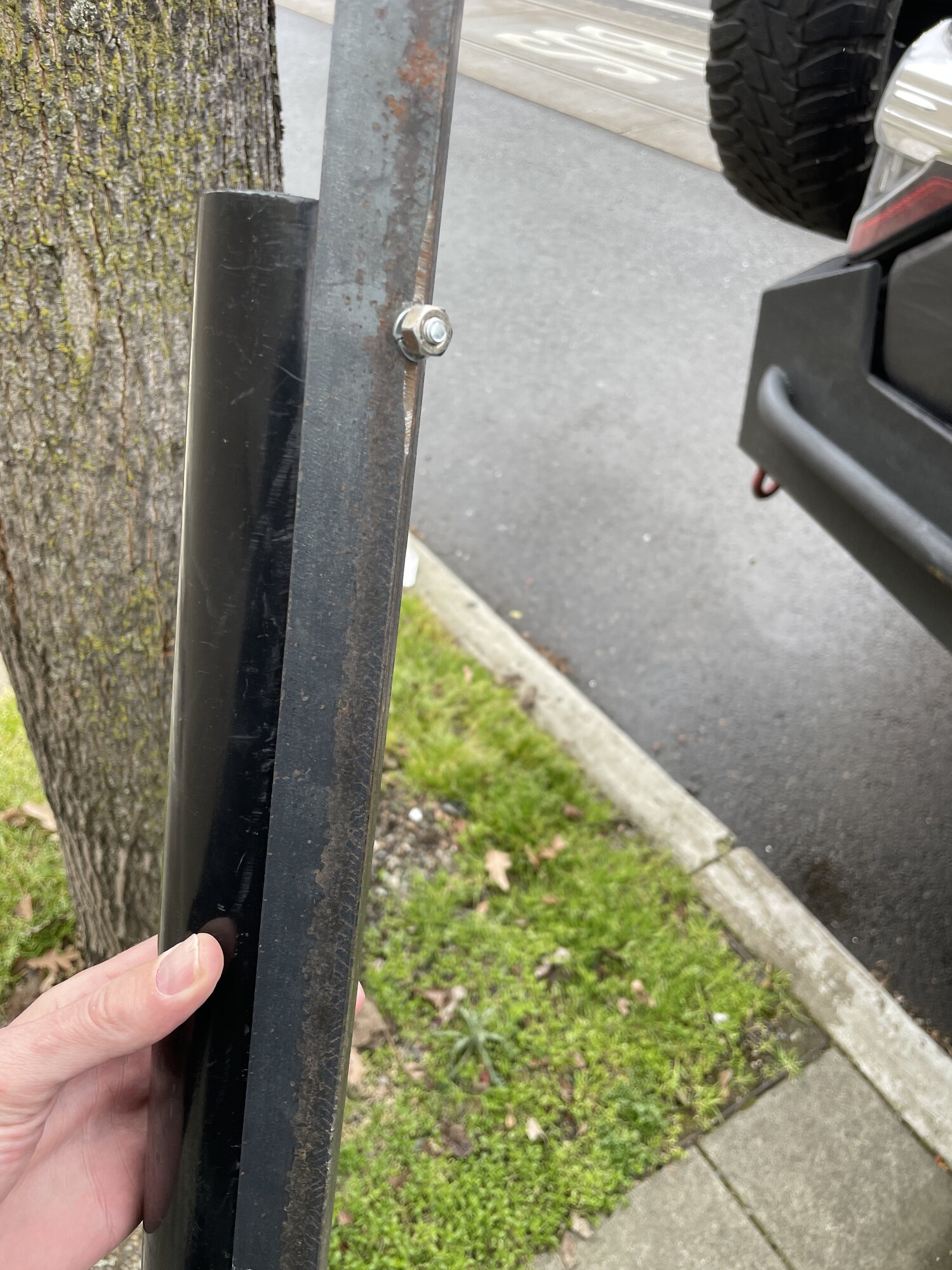

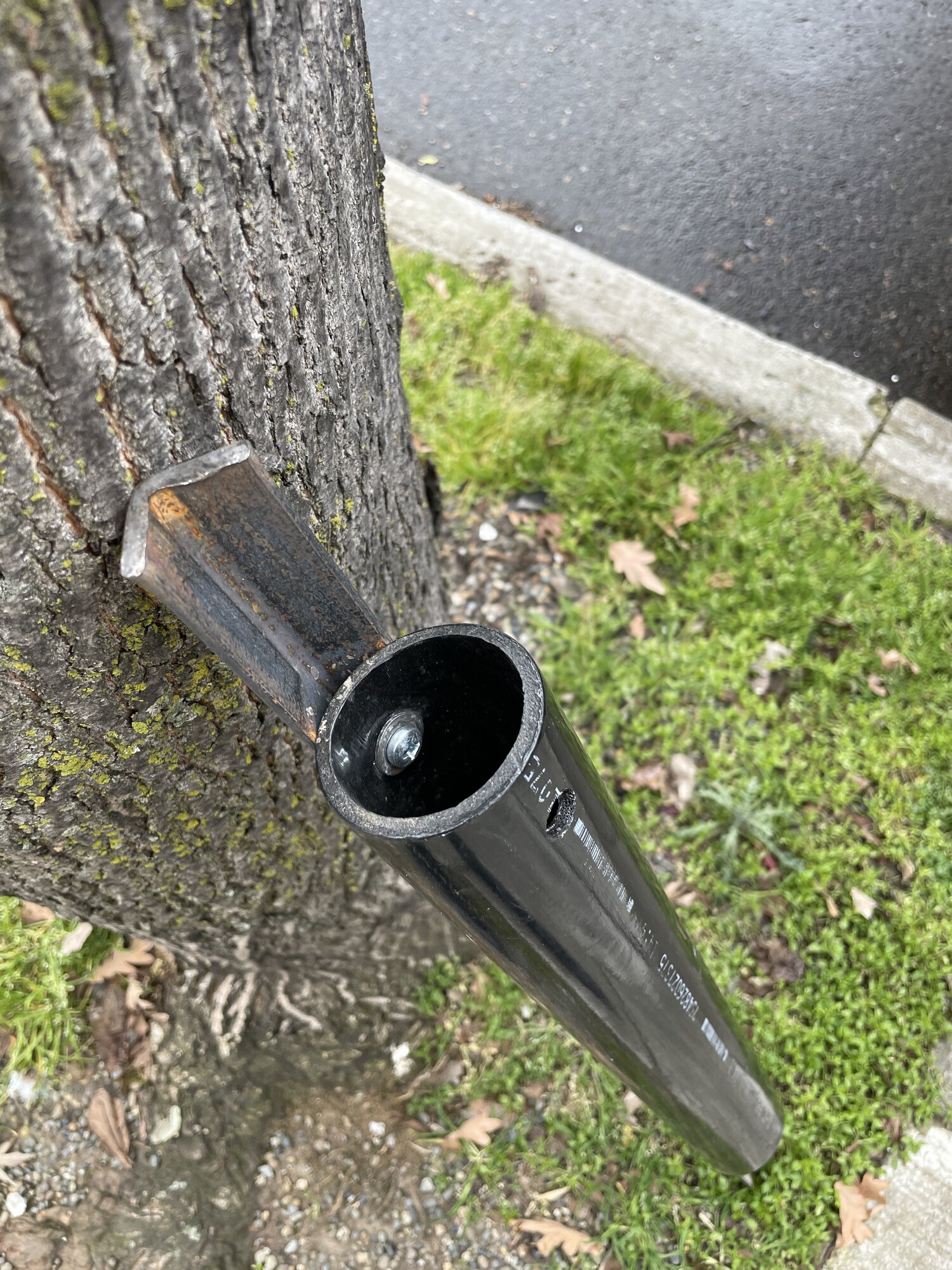

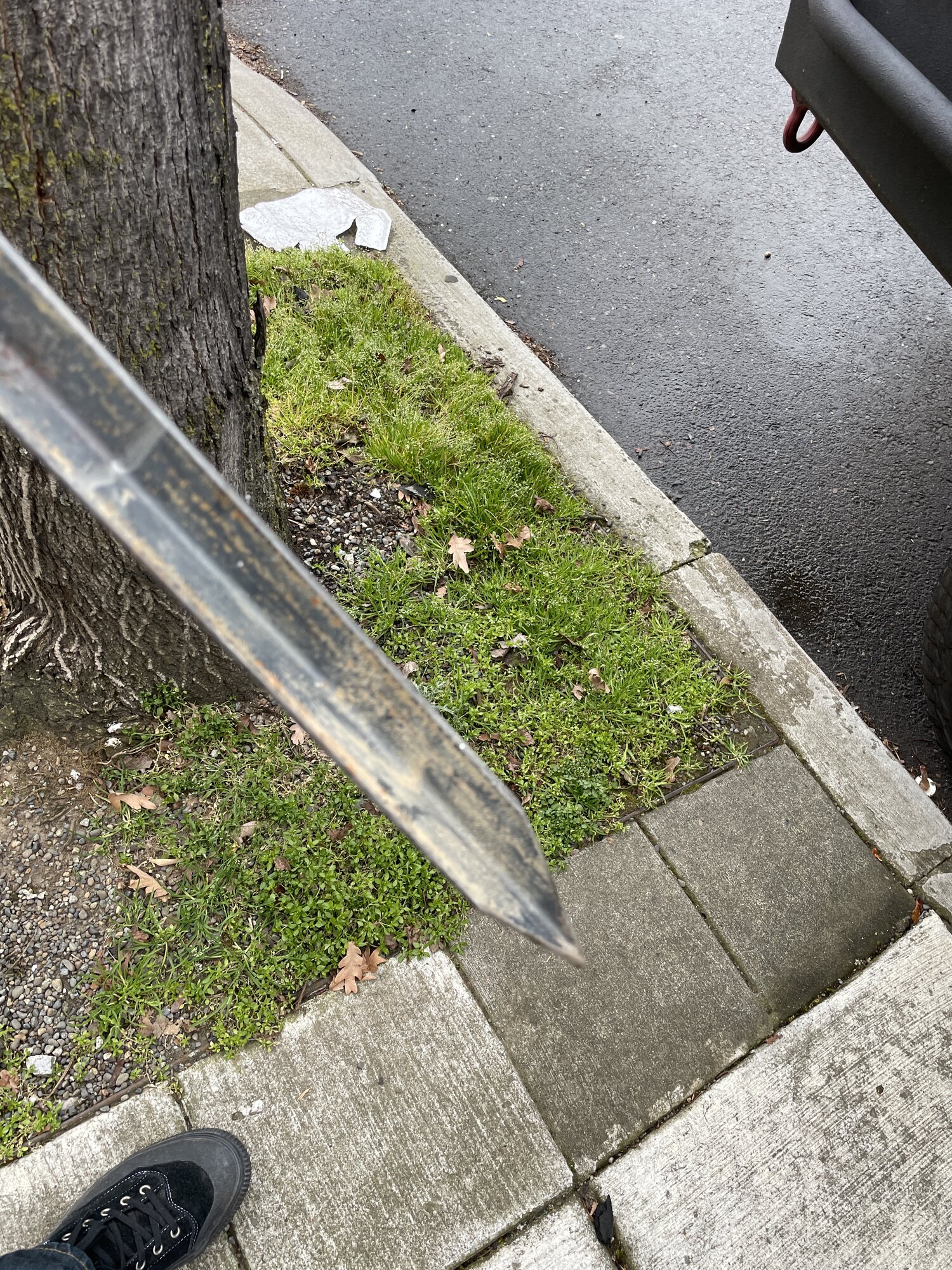

Drilled a hole in the top of the PVC so I could get a screwdriver in there to tighten the bolt. Ground down the back of the angle slightly to make a flat spot for the nut.



[DOKF]

For a lighter, but maybe less rugged holder, I have used an aluminum angle piece



[plumbertom]

P....Tom Again...."rod holder with recycled materials" on U-TUBE!!!

Missed the reference to previous post in this one.



[Casting Call]

Drilled a hole in the top of the PVC so I could get a screwdriver in there to tighten the bolt. Ground down the back of the angle slightly to make a flat spot for the nut.

pcs.... looks very, very strong will work for hard pan. Alternate for soft pan, remove lower bolt, install longer bolt topside with wing nut, pivot for tight storage and safety. Tony
