Battery box for kayak fish finder

There are a million guides out there for battery boxes for fish finders. I tossed a picture of my setup in a Wickiup report and had an interest. I wanted a box that could be multipurpose, that I could use to run my fish finder or a laptop or as a large powerbank to run a pump for inflatables. Also, it just didn't make sense for me to buy a bunch of new batteries when I'm sitting on a handful of 20v Dewalt li ion batteries for my cordless tools.

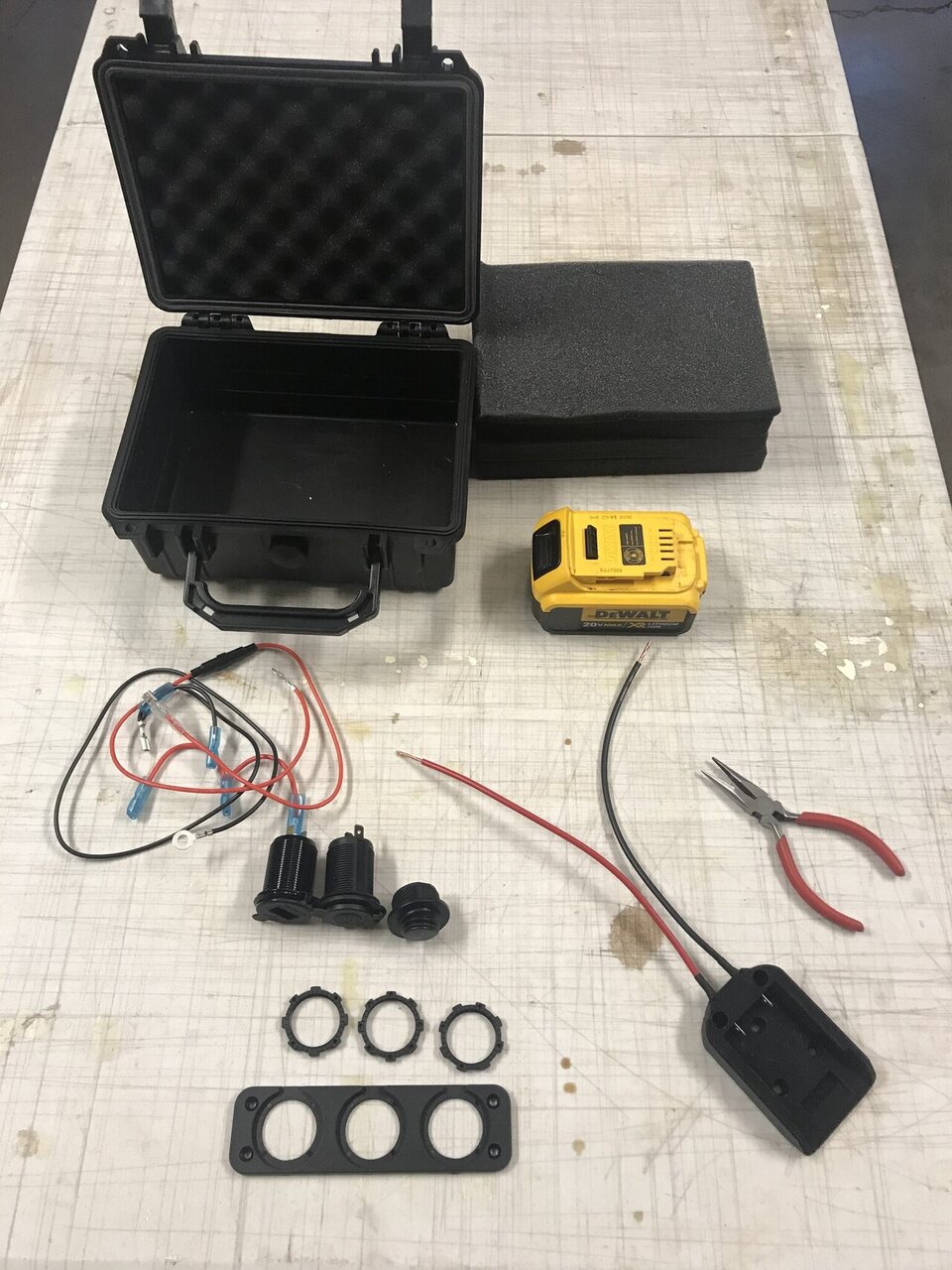

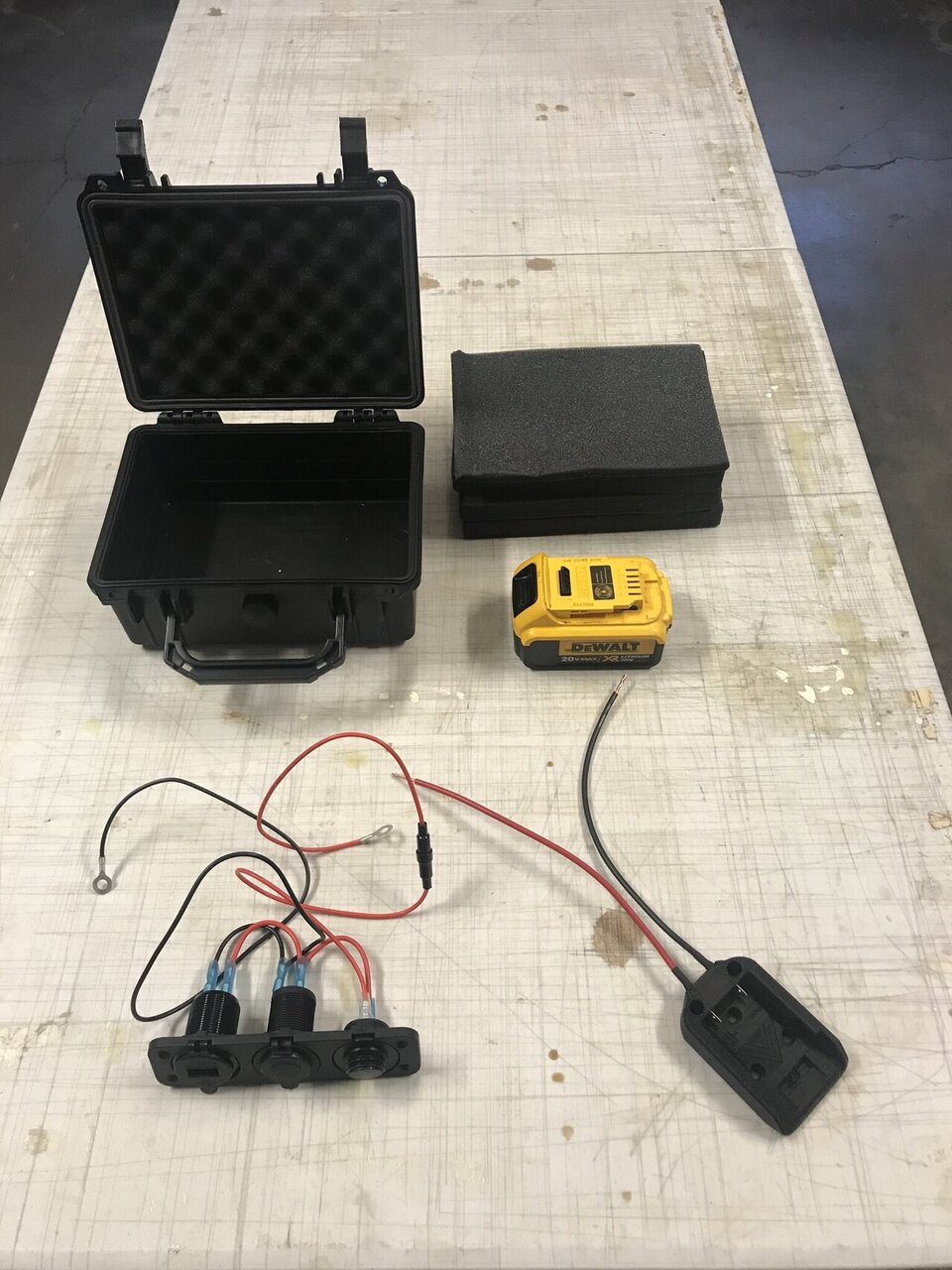

So here are the materials for the build:

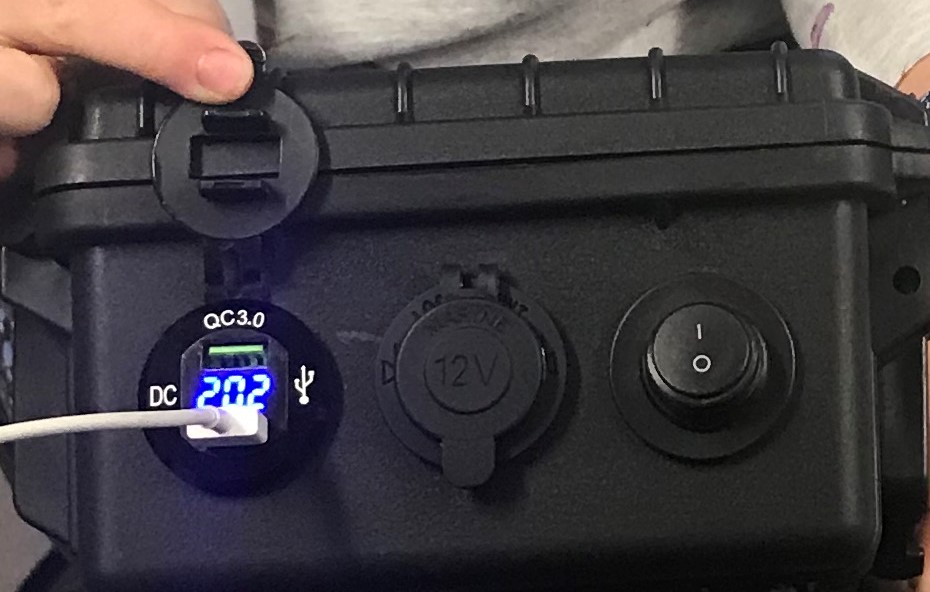

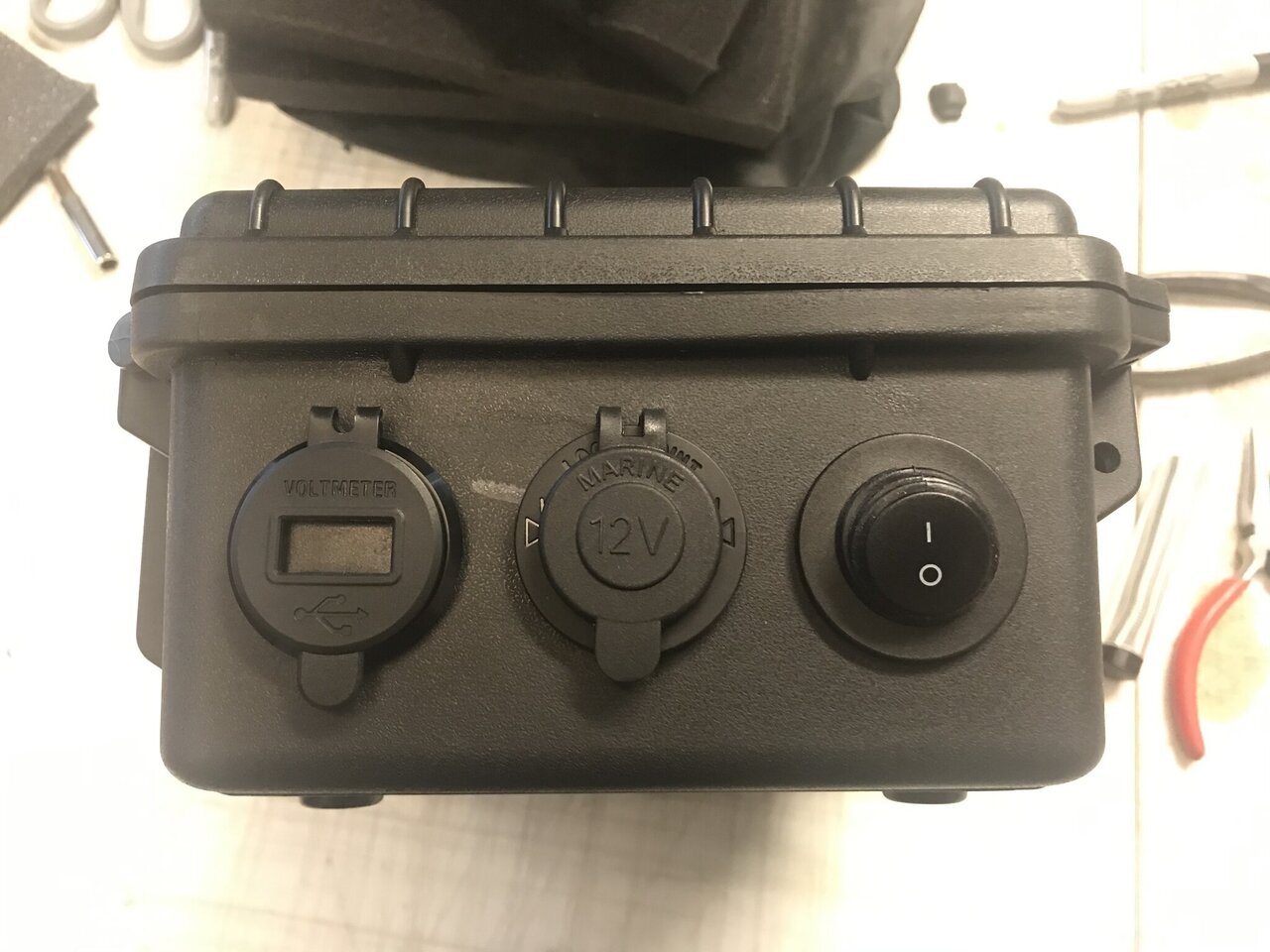

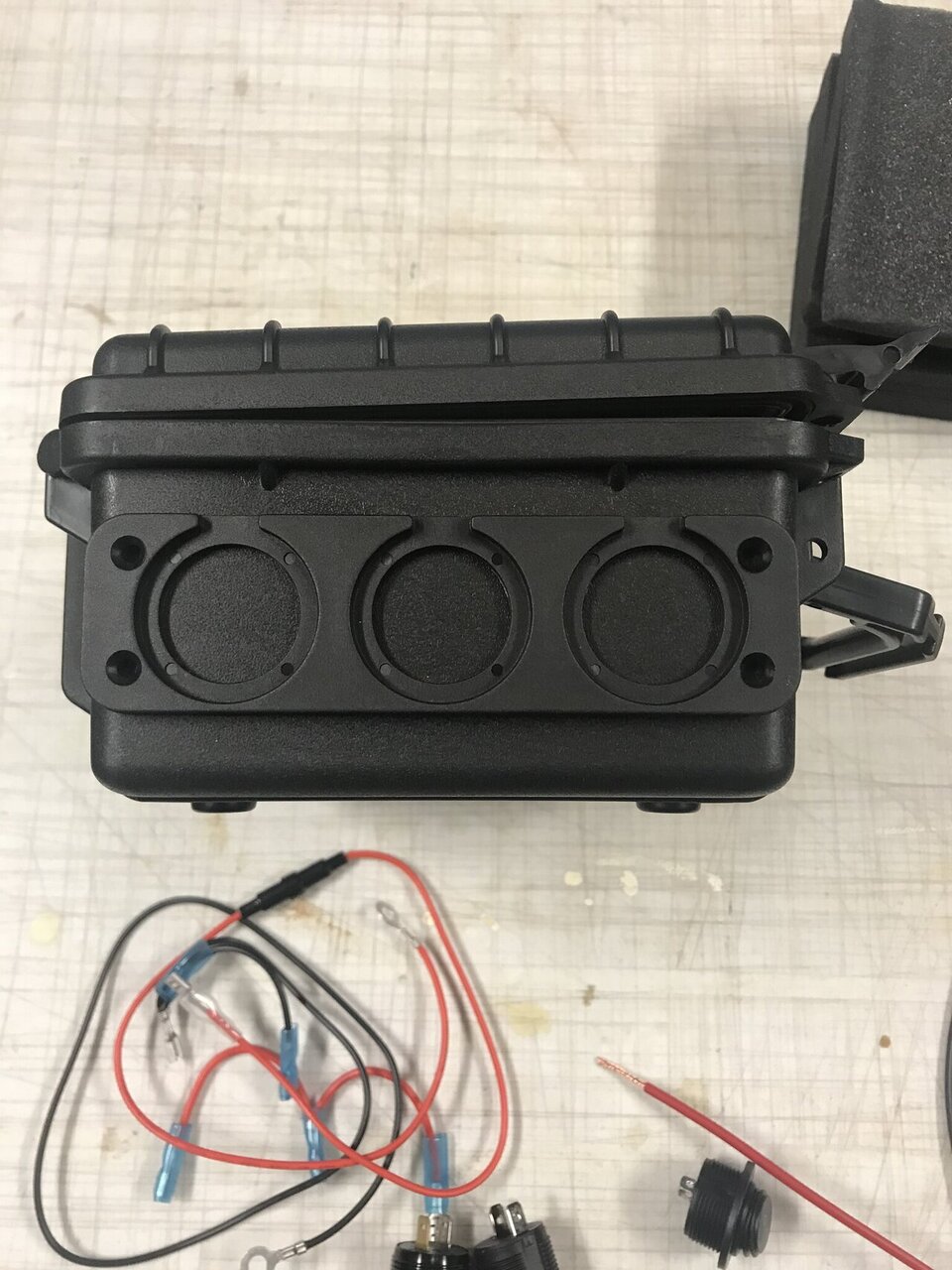

The assembly is pretty much red to red black to black, soldering and covering connections as you go, or use some other type of connectors. Initially, I built this without the step-down converter and left it 20v. The 12v socket and switch included USB ports, so I could charge devices via USB, and other devices that used the 12v plug could handle higher voltages like my laptop cord.

It wasn't until I wanted to use this with my fish finder (Humminbird Helix 5) that I needed to dial in the voltage and amperage. The fish finder needed 12v and the documentation required a 3 amp fuse. Swapping out the fuse in the 12v plug/cable was easy enough. I cut the connection I had made initially from the battery adapter to the switch, and ran the 20v battery into the 24v leads to the converter, then ran the 12v output from the converter to the switch.

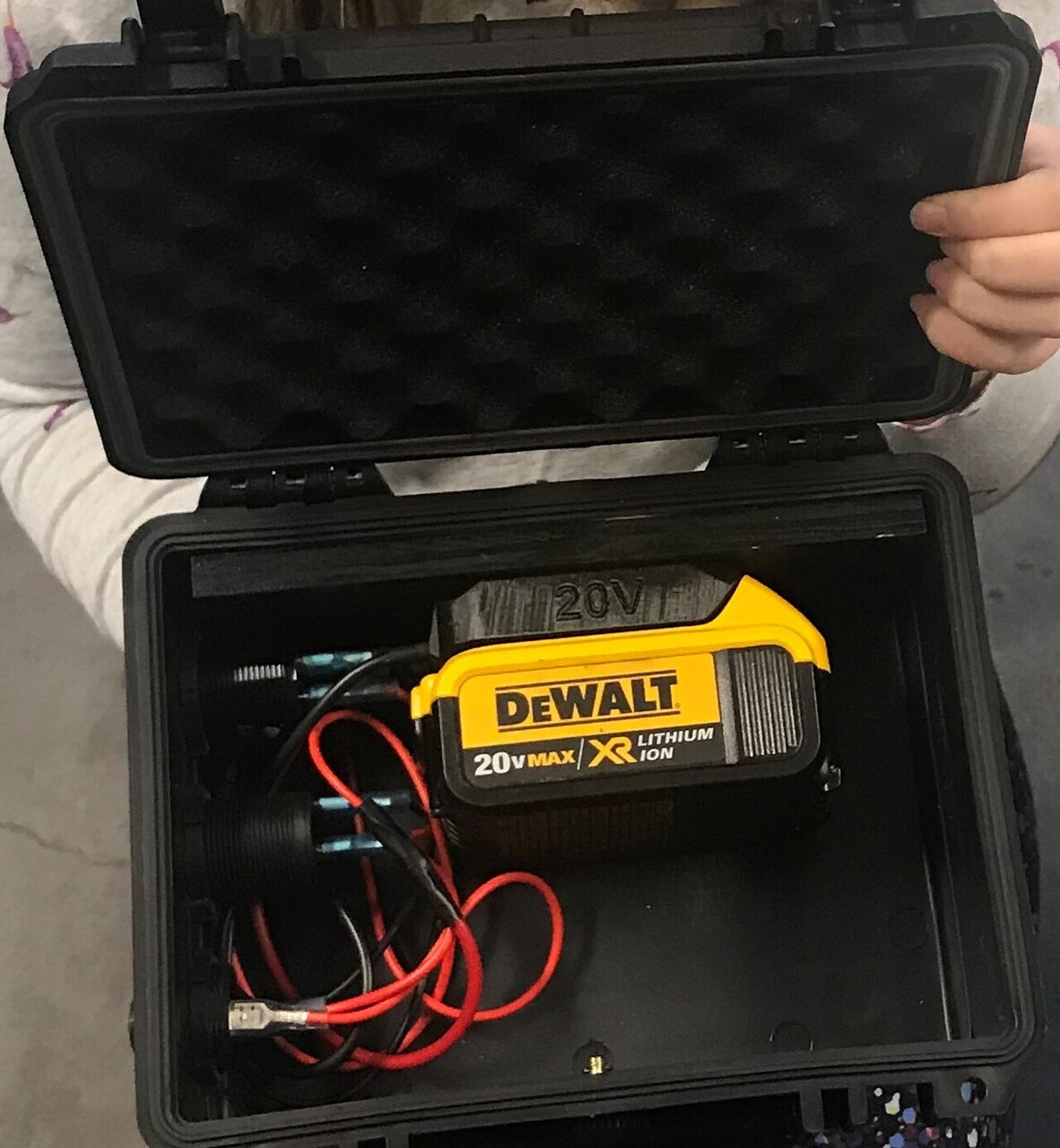

This setup can hold up to a 6ah Dewalt 20v battery which will easily power my fish finder all day. Everything ran about $85 total. There are lots of options out there for battery boxes, but this was a great solution for me as it is SUPER flexible in charging a variety of devices, and allowed me to utilize batteries I already owned. One note - I've read that this type of step-down or buck converter will draw from the battery even when there isn't a load so it's common to have a switch between the battery and the converter. I opted to not install one as I won't slide in a battery unless I'm ready to start using it.

IMG_0864.jpg IMG_0865.jpg

Last edited by a moderator:
JasonInBend

JasonInBend

Member
Joined
Jun 1, 2010
Messages
61
With the step-down converter wired in for the fish-finder.


JasonInBend

JasonInBend

Member
Joined
Jun 1, 2010
Messages
61
One drawback to this system is the non-waterproof 12v plug sticking out of the box. I tossed the whole getup in a lightweight drybag, and with the cord hanging out just give it a couple turns and clip it to the back of my kayak seat. Works like a champ. There are definitely more elegant solutions out there, but this option kept the cost low and made it multi-function for me.

Welcome any feedback and/or suggestions for improvements. Thanks!

JasonInBend

JasonInBend

Member
Joined
Jun 1, 2010
Messages
61
You'll notice my young daughter is holding the box in some of the photos. This was a great project for her to learn a little bit about problem solving, electronics, and some soldering.

Casting Call

Casting Call

Active member
Joined
Feb 10, 2013
Messages
651
Location
Lincoln City, Oregon
IMHO I like to keep things simple. Here's how I did my electronics. I went to goodwill bought the need amount of sacrificial ice chest. Picked up a couple of deep cycle lawn mower/generator small batts. As many as a full size would take up or as needed. The ice chest can be water-tight or vented, you can place them near the bow and mount electronics on them or near the rear or long the rails or even sit on them. small compac easy to carry as many as need for time on the water. Belive me you won't run out of power. If you do! swap out as needed. Tony

00Swede

00Swede

Member
Joined
Aug 3, 2017
Messages
58
Location
Mid-Columbia
Thanks for posting. I've got a box that I use for some small 12 volts I bought on Amazon. They work alright but I like how versatile yours is. I'll probably build one for now with my batteries but with your add on's and no step down converter.

bass

bass

Most Featured
Joined
Aug 4, 2008
Messages
1,961
Location
Cedar Mill area of Portland, OR
That is really nice @jfrost . I just toss my battery in a dry bag and roll it up (and the wiring too) a little bit. I then store that inside my hull and pull the cables through the front hatch. I have thought about doing something nicer like you have done but it is hard to get up the energy to fix something that isn't broken.

Specifically, I have a 12V 30AH LIon battery for my FF and steadycast (and NMEA2000 network to connect them) and it all fights easily in a 15L dry bag. The battery and network trunk are in the dry bag.

NKlamerus

NKlamerus

Most Featured
Joined
Aug 12, 2018
Messages
440
Very nice!

We always used the orange plastic waterproof document boxes but the Apache cases are probably much thicker.

I use DeWalt T-Stak boxes for my tackle and kayak gear, could definitely mod the standard box into something like this although it'd definitely have some extra room

I run DeWalt as well, does the adapter fit a FlexVolt? Should have the tabs to hit the mechanical switch in the battery from 60V to 20V

JasonInBend

JasonInBend

Member
Joined
Jun 1, 2010
Messages
61
I bit the bullet and upgraded to a Dewalt Flexvolt chop saw, so I had the chance to test this setup with a FlexVolt 60 battery. Works like a champ - I bench tested for an hour, no noticeable heat and the converter steps it down to 12.3v.

NKlamerus

NKlamerus

Most Featured
Joined
Aug 12, 2018
Messages
440
I bit the bullet and upgraded to a Dewalt Flexvolt chop saw, so I had the chance to test this setup with a FlexVolt 60 battery. Works like a champ - I bench tested for an hour, no noticeable heat and the converter steps it down to 12.3v.
Any long term testing with this?

JasonInBend

JasonInBend

Member
Joined
Jun 1, 2010
Messages
61
Still loving it - worked great for me all season. I use that same battery box in the back of my truck so the kids aren't fighting over a charging cord/plug. I was a bit leery of the dewalt battery adapter as it looks like it is 3d printed, but it's holding up great.

NKlamerus

NKlamerus

Most Featured
Joined
Aug 12, 2018
Messages
440
Still loving it - worked great for me all season. I use that same battery box in the back of my truck so the kids aren't fighting over a charging cord/plug. I was a bit leery of the dewalt battery adapter as it looks like it is 3d printed, but it's holding up great.
What's the strongest thing you've plugged in?

A little 12v heated blanket whike camping would be awesome. Looks like they pull about 3.5 amps/45 watts at 12v

NKlamerus

NKlamerus

Most Featured
Joined
Aug 12, 2018
Messages
440
Also, a portable 12v sump pump or bilge pump would be pretty slick....

My dishwasher flooded yesterday, little sump would have been nice! Instead a turkey baster and a bucket had to do

JasonInBend

JasonInBend

Member
Joined
Jun 1, 2010
Messages
61
hmmm.... honestly I think the most draw I've placed on the system was a laptop charger which pulled 4 amps at 12v. I'm not great with electronics, but I think the 5 amp max output on the buck converter would be the greatest constraint. I think most smaller/medium 12v bilge bumps draw less than 5 amps so I don't see why that wouldn't work. Solid idea on the heating camping blanket.

NKlamerus

NKlamerus

Most Featured
Joined
Aug 12, 2018
Messages
440
hmmm.... honestly I think the most draw I've placed on the system was a laptop charger which pulled 4 amps at 12v. I'm not great with electronics, but I think the 5 amp max output on the buck converter would be the greatest constraint. I think most smaller/medium 12v bilge bumps draw less than 5 amps so I don't see why that wouldn't work. Solid idea on the heating camping blanket.
Thanks bud, I was looking through Amazon and it looks like you can get larger converters (higher amperage), the biggest drawback is probably the DeWalt battery itself if you can get a converter rated for 20a? although the "compact" batteries and FlexVolts use a 21700 cell instead of 18650, and are rated for more flow

I've got plenty to try it, just gathering the other components now

If I do get a converter that large I would never push it, probably still use a 5amp fuse just to watch the consumption

NKlamerus

NKlamerus

Most Featured
Joined
Aug 12, 2018
Messages
440

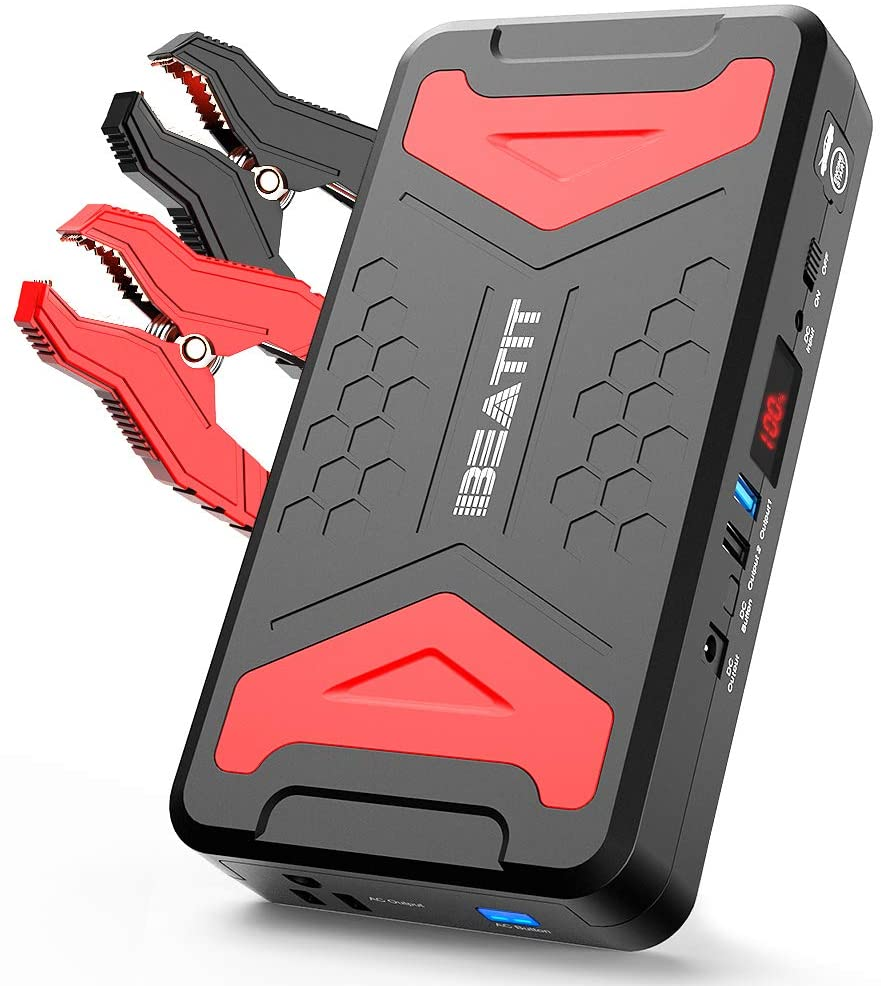

Any (dis)advantage to using something like this?


View attachment 627781

It has 2 x USB, 12vdc, and 110vac outputs
Not that I can think of? Other than adding another charger to the wall

Personally I'd be careful with unknown lithium cells, I've had a few RC packs and fancy flashlight batteries go bad over the years

You could probably just buy one of them and put it in a waterproof case, figure out how to run the cords
