This post is a long time coming, just forgot to put it on here. Hope it can help. This past summer I got an Alaskan and had visions of it being the perfect all around boat. Small enough to use by myself or with a couple friends for any species we want. I started working on it almost immediately. I decided to build a front deck OFF of the bench. I left it because it was full of foam and was a solid base. Its been so long that I forgot many of the details but I took lots of pics, so you get the idea. Im not a carpenter so some of this may look a little funny... I just see and do, and it worked very well.

5519981_n.jpg 8369172_n.jpg 8263535_n.jpg

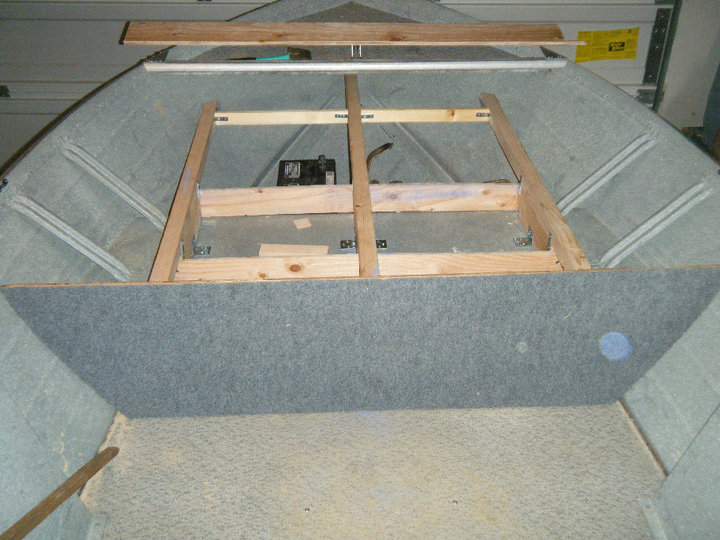

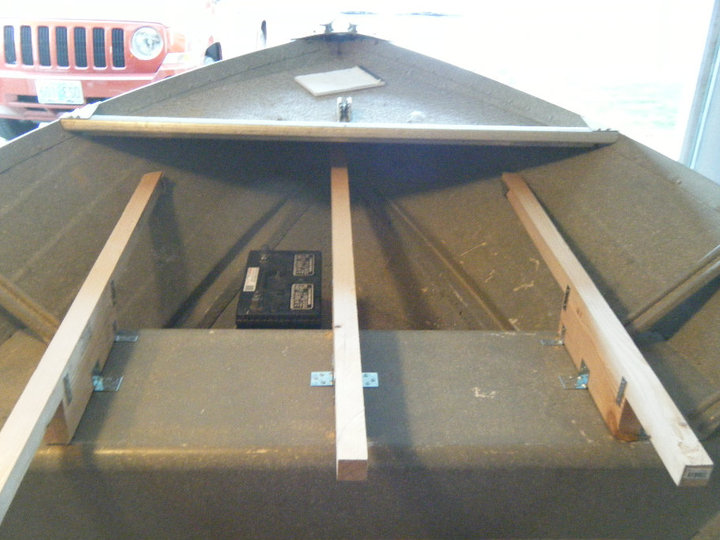

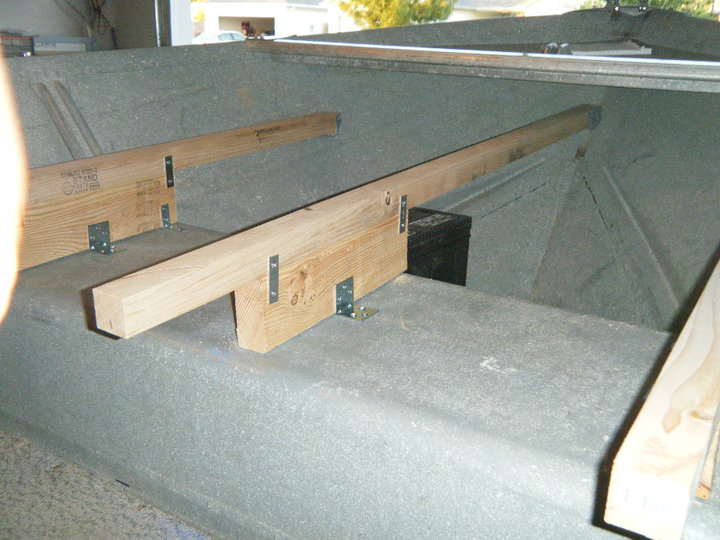

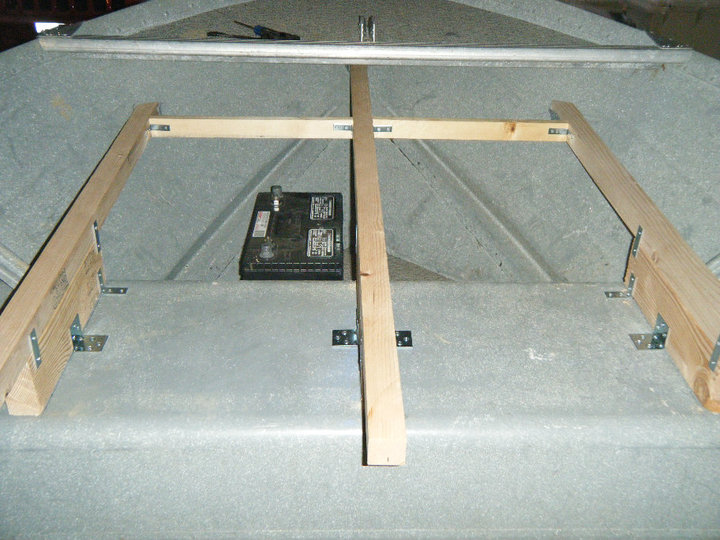

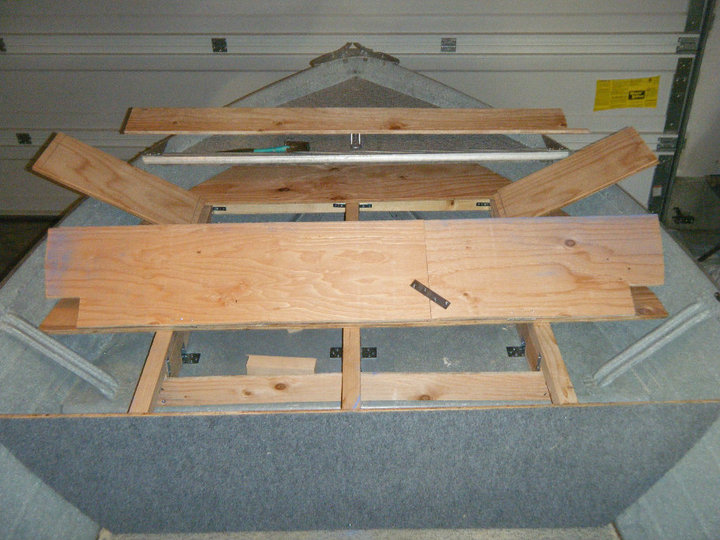

I used a 2x2 frame that is supported by the bench and I angled the ends to rest on the front of the boat (with some scrap carpet as padding). My goal was deep storage in the nose (batteries and anchor), with shallow storage on the bench and more storage just inside the bench.

5523007_n.jpg 7884833_n.jpg 1046465_n.jpg

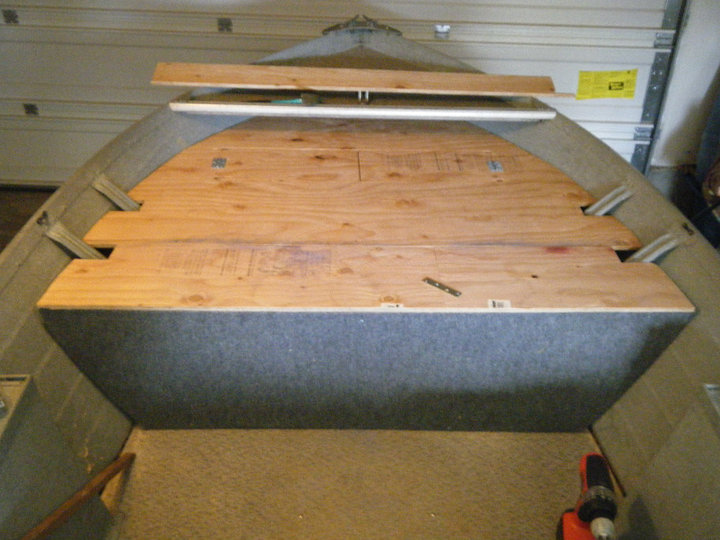

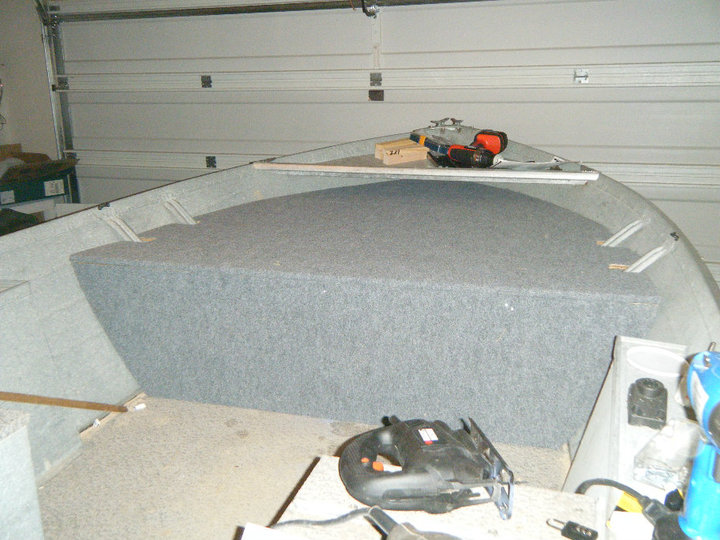

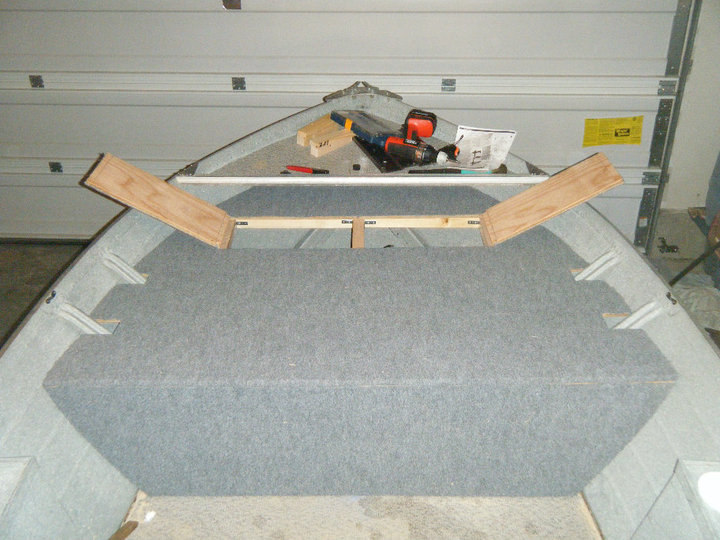

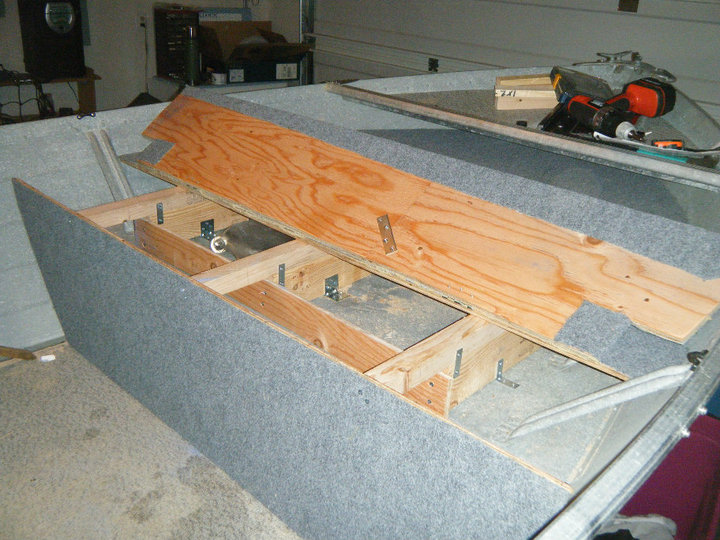

I used a lot of cardboard to create a mold for the deck, and then hacked some more once the plywood was cut. The frame was solid so I went light on the plywood to save weight. I treated the wood that would be exposed with a water proof-er. After that dried I glued the outdoor carpet on.

5809067_n.jpg 6932116_n.jpg 6570622_n.jpg

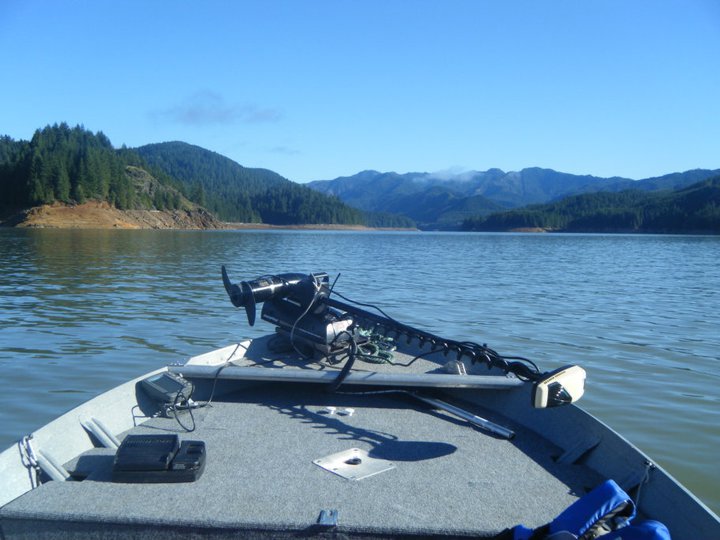

This carpet is very nice because it hides any flaws in your work :lol: I then added a bow mount motor from craigslist and a seat pedestal. I wasn't looking for it but it has autopilot which is amazing! I dont think I could live without it anymore. The fish finder that came with the boat is very temperamental and wouldnt mark fish so I mounted it on the trolling motor. Now I can see depth and some structure while bass fishing.


I know I left parts out but you can always just ask questions.

G

GraphiteZen

Well-known member
Joined
Mar 21, 2008
Messages
2,157
Location
Corvallis, Oregon
Definitely like that man, good work!!! When we going for sturgeon??

C

capblack

Well-known member
Joined
Mar 17, 2009
Messages
884
Location
Lyons

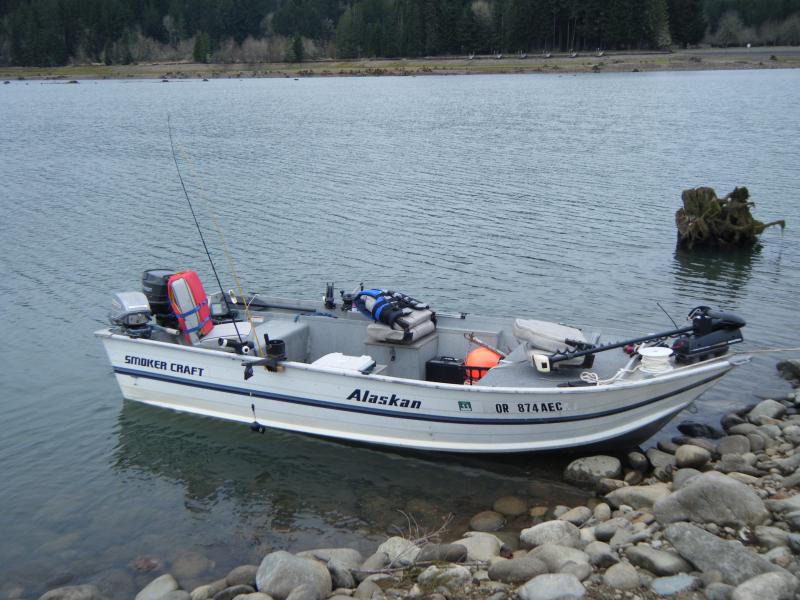

do you have a picture of the whole boat? nice work, but i think if i did that on my 12 fter it would be all deck:lol:

H

Hawk

Well-known member
Joined
Mar 28, 2008
Messages
1,570
Location
Have You Kissed a Bass Today???
You did a great job bro. I reely like it, & your work. :D:cool:

I have a 16' alumacraft lunker with windscreen & starboard steering console. A couple years ago i mounted a Minnkota 50lb thrust bowmount troller, foot control. I also mounted on the forward bench a comfortable seat with armrests, from an older boat. I'm an ol' mountain man & now enjoy the comfort. It works reel well for me. :lol::lol::lol:

Last edited:
C

capblack

Well-known member
Joined
Mar 17, 2009
Messages
884
Location
Lyons
i like the walk through design, is that a 16 fter?

G

GDBrown

Well-known member
Joined
May 28, 2009
Messages
1,485
Location
Hillsboro, Oregon
It looks like you have more skill that you're willing to admit. You have done well with your project, I'm very impressed.

C

capblack

Well-known member
Joined
Mar 17, 2009
Messages
884
Location
Lyons
did you get rid of the drifter?

Irishrover

Irishrover

Moderator
Most Featured
Joined
Apr 30, 2008
Messages
2,085
Location
Ocean
Seriously you should send some pictures to Smoker Craft. That's great work. If I owned that company I'd try to hire you for your workmanship and inginuity!

C

Combat Chuck

Active member
Joined
Feb 1, 2008
Messages
586
Location
Lebanon, Oregon
nope, I still got the drifter. Someday I will shrink down to just the smokercraft... just not yet. Thanks for the compliments, I hope this helps with other boat projects.

F

fishindude

Member
Joined
Apr 21, 2010
Messages
118
Location
Ashland Oregon
Nice work , functionality as well as looking really nice:clap::dance::clap:

Troutski

Troutski

Moderator
Joined
Dec 22, 2006
Messages
1,984
Location
Springfield, Oregon
Great job....you do have skills. I love the Alaskan's...15' is great for two avid anglers..perfect for ONE;). Great job, thanks for sharing:clap::dance::clap:

Chuck

T

Thuggin4Life

Well-known member
Joined
Apr 10, 2009
Messages
3,778
Location
Springfield, Oregon
Nice boat man! Work looks good! Curious how you like them downriggers? I hated mine. and they won't work for macs. with 100' of cable and a 4lb ball seemed i was only like 60' down. they did work ok for trout trolling up to about 40' though but not worth the hassle when i can just add led to my trolling gear. ended up seeling the 3 i had.

C

Combat Chuck

Active member
Joined
Feb 1, 2008
Messages
586
Location
Lebanon, Oregon
My downriggers are good so far. I havent gone past 50' yet and also troll very slow with my electric. I hear replacing the cable with braid reduces the blowback and is silent. I might try some of that.

G

GraphiteZen

Well-known member
Joined
Mar 21, 2008
Messages
2,157
Location
Corvallis, Oregon
My downriggers are good so far. I havent gone past 50' yet and also troll very slow with my electric. I hear replacing the cable with braid reduces the blowback and is silent. I might try some of that.

Reducing drag on the ball is important as well. Perhaps consider a different shape.
